ECLNR/L 95° Turning Holders
Lever clamp, for CNMG 1204 / 1606 inserts. Shank 20x20 to 32x32 mm, plus inch shanks 3/4" to 1-1/4".
Ask for a quoteSection 06 · Turning holders, boring bars, milling cutters and grooving tools
Tool Holders
88 indexable tool holder ranges for CNC and conventional lathes and milling machines: external turning holders, screw clamp holders, boring bars, indexable end mills and face mills, and grooving and parting holders. Supplied to suit standard ISO inserts.
External Turning Holders 21 items

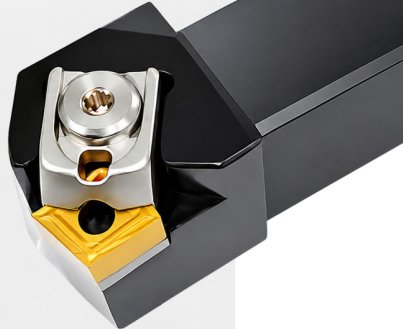

ECKNR/L 75° Turning Holders
Lever clamp, for CNMG 1204 inserts. Shank 20x20 to 32x32 mm.
Ask for a quote

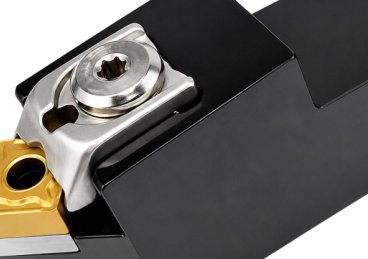

ECMNN 50° Neutral Holders
Lever clamp, for CNMG 1204 / 1606 inserts. Shank 20x20 to 32x32 mm.
Ask for a quote
ECRNR/L 75° Turning Holders
Lever clamp, for CNMG 1204 inserts. Shank 20x20 to 32x32 mm.
Ask for a quote

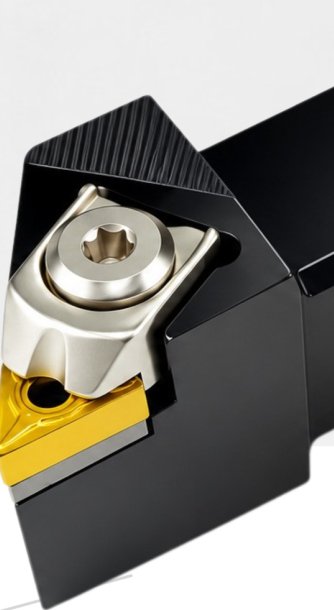

ETJNR/L 93° Turning Holders
Lever clamp, for TNMG 1604 inserts. Shank 16x16 to 32x32 mm, plus inch shanks.
Ask for a quote

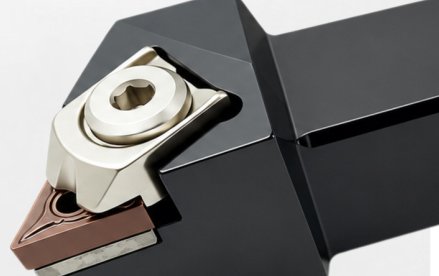

ETGNR/L 90° Turning Holders
Lever clamp, for TNMG 1604 inserts. Shank 16x16 to 25x25 mm.
Ask for a quote

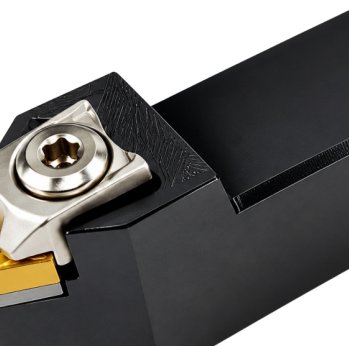

ETENN 60° Neutral Holders
Lever clamp, for TNMG 1604 inserts. Shank 20x20 and 25x25 mm.
Ask for a quote

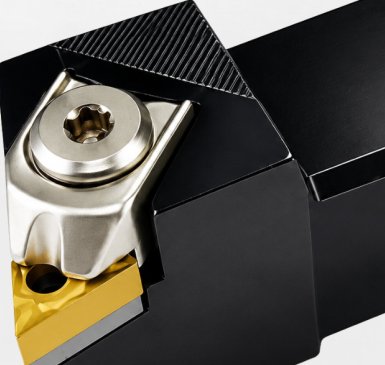

ETQNR/L 107.5° Copying Holders
Lever clamp, for TNMG 1604 inserts. Shank 20x20 to 32x32 mm.
Ask for a quote

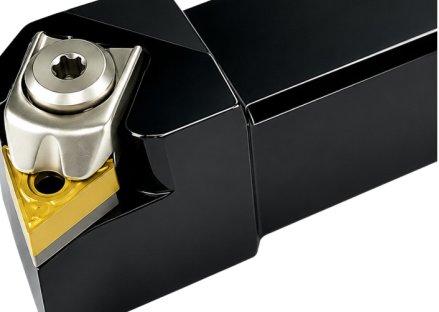

ETFNR/L 90° Facing Holders
Lever clamp, for TNMG 1604 inserts. Shank 20x20 to 32x32 mm.
Ask for a quote

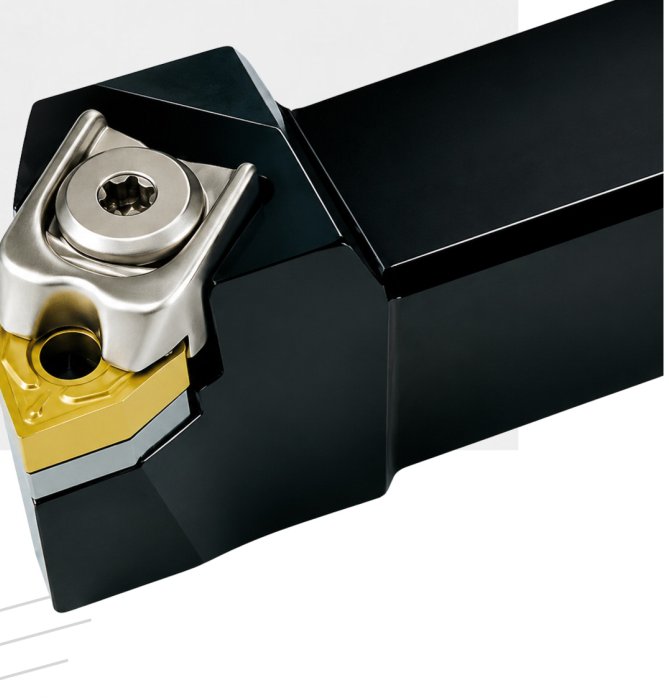

EWLNR/L 95° Turning Holders
Lever clamp, for WNMG 0604 / 0804 inserts. Shank 20x20 to 32x32 mm, plus inch shanks.
Ask for a quote

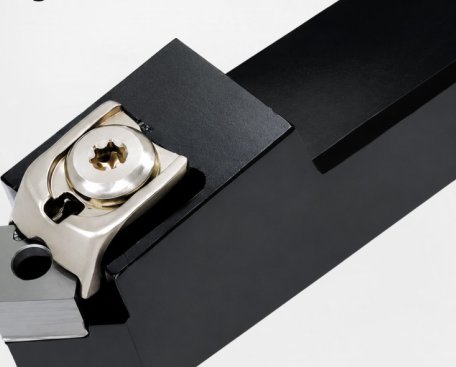

ESDNN 45° Neutral Holders
Lever clamp, for SNMG 1204 inserts. Shank 20x20 to 32x32 mm.
Ask for a quote

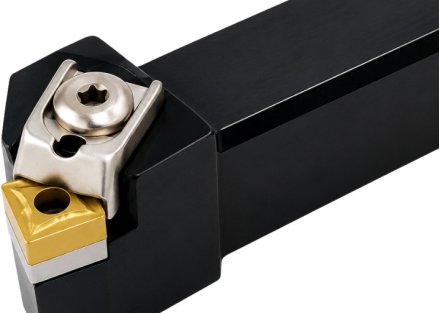

ESBNR/L 75° Turning Holders
Lever clamp, for SNMG 1204 inserts. Shank 20x20 to 32x32 mm.
Ask for a quote

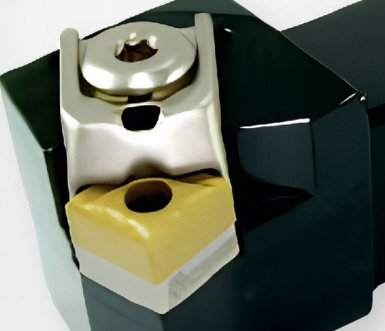

ESKNR/L 75° Facing Holders
Lever clamp, for SNMG 1204 inserts. Shank 20x20 to 32x32 mm.
Ask for a quote

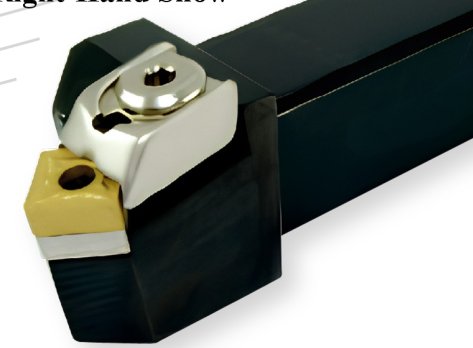

ESSNR/L 45° Chamfering Holders
Lever clamp, for SNMG 1204 inserts. Shank 20x20 to 32x32 mm.
Ask for a quote

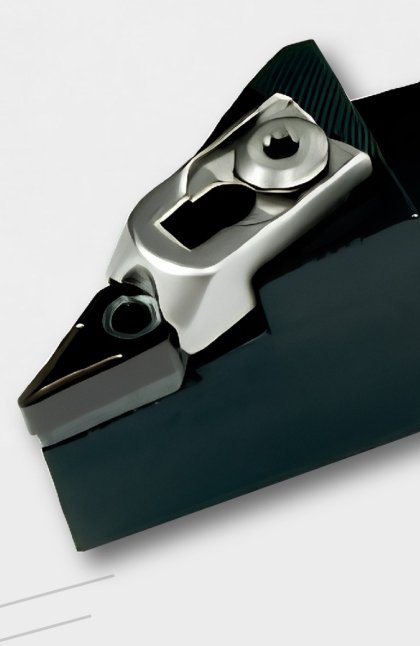

EVJNR/L 93° Profiling Holders
Lever clamp, for VNMG 1604 inserts. Shank 20x20 to 32x32 mm, plus inch shanks.
Ask for a quote

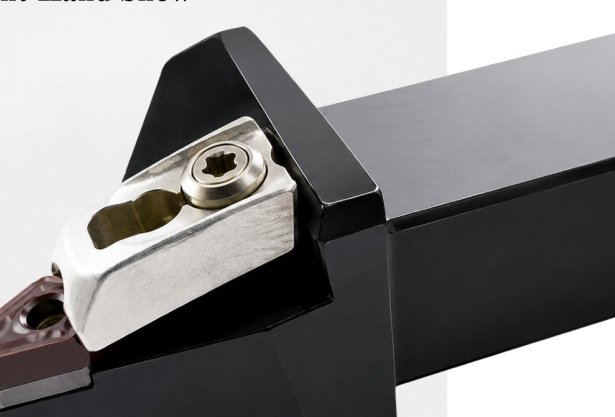

EVVNR/L & EVVNN 72.5° Profiling Holders
Lever clamp, for VNMG 1604 inserts. Right, left and neutral; shank 20x20 to 32x32 mm.
Ask for a quote

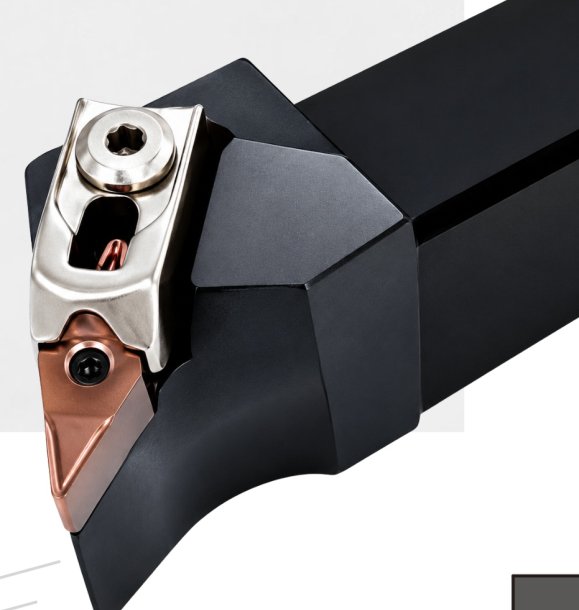

EVQNR/L 117.5° Copying Holders
Lever clamp, for VNMG 1604 inserts. Shank 25x25 and 32x32 mm.
Ask for a quote

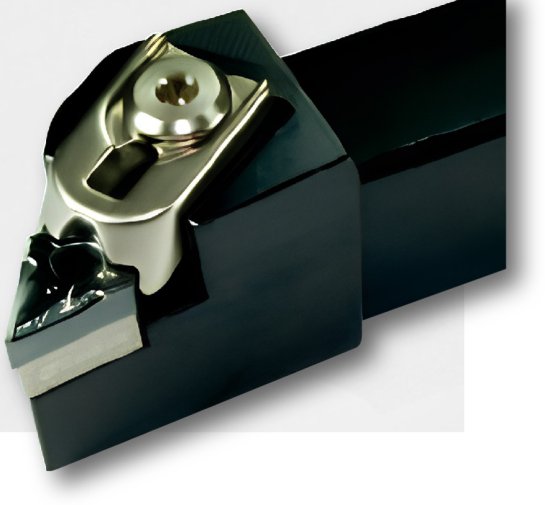

EDJNR/L 93° Profiling Holders
Lever clamp, for DNMG 1104 / 1504 / 1506 inserts. Shank 20x20 to 32x32 mm, plus inch shanks.
Ask for a quote

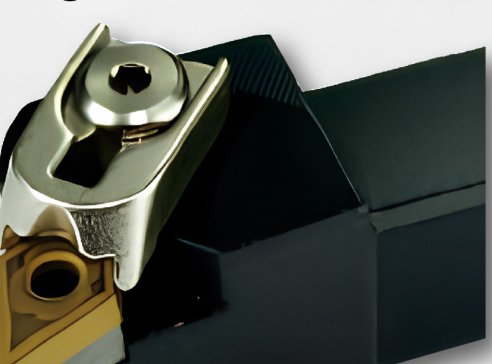

EDQNR/L 107.5° Copying Holders
Lever clamp, for DNMG 1104 / 1504 / 1506 inserts. Shank 20x20 to 32x32 mm.
Ask for a quote

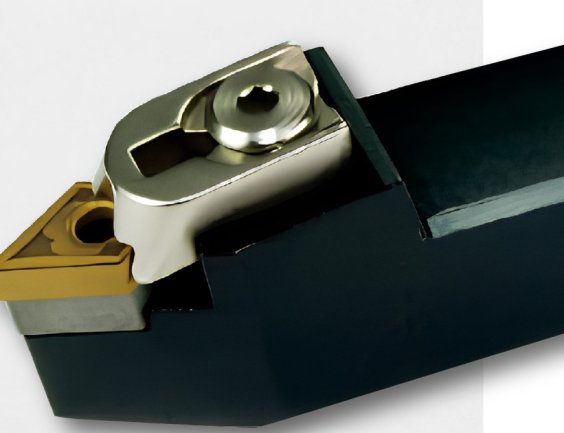

EDNNN 63° Neutral Holders
Lever clamp, for DNMG 1504 / 1506 inserts. Shank 20x20 to 32x32 mm.
Ask for a quoteScrew Clamp Turning Holders 9 items

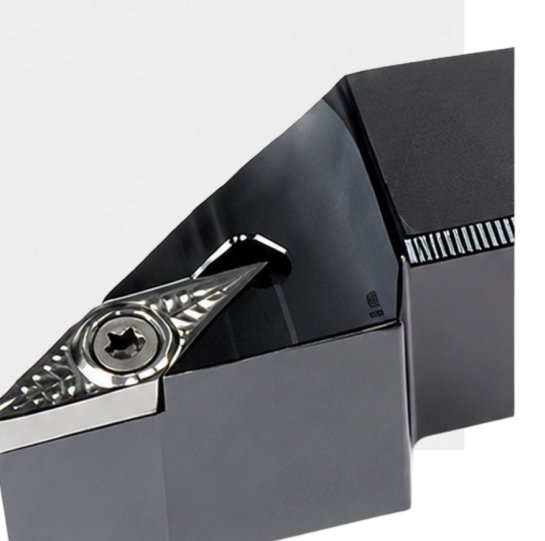

SVJBR/L 93° Holders
Screw clamp, for VBMT 1103 / 1604 inserts. Shank 10x10 to 25x25 mm.
Ask for a quote

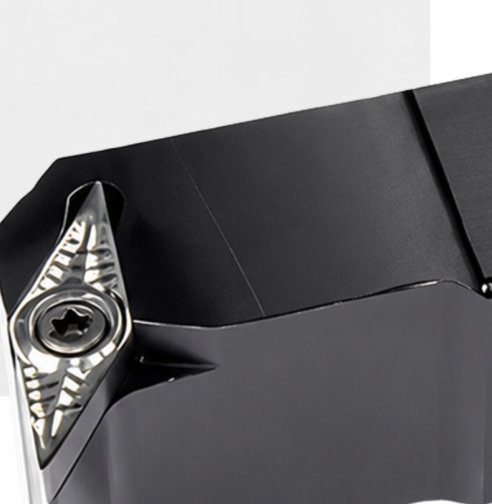

SVUBR/L 93° Holders
Screw clamp, for VBMT 1103 / 1604 inserts. Shank 16x16 to 25x25 mm.
Ask for a quote

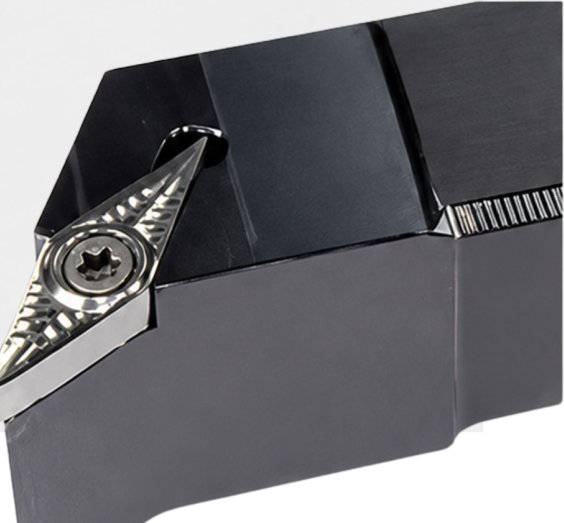

SVQBR/L 117.5° Holders
Screw clamp, for VBMT 1103 / 1604 inserts. Shank 10x10 to 25x25 mm.
Ask for a quote

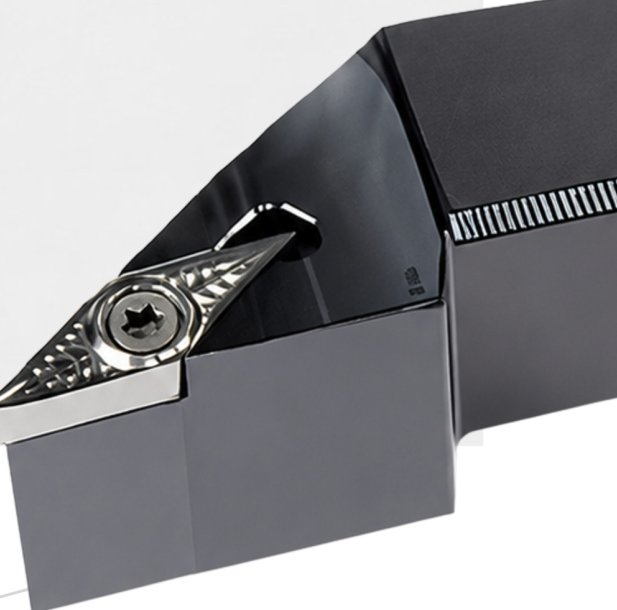

SVJCR/L 93° Holders
Screw clamp, for VCMT 1103 / 1604 inserts. Shank 10x10 to 25x25 mm.
Ask for a quote

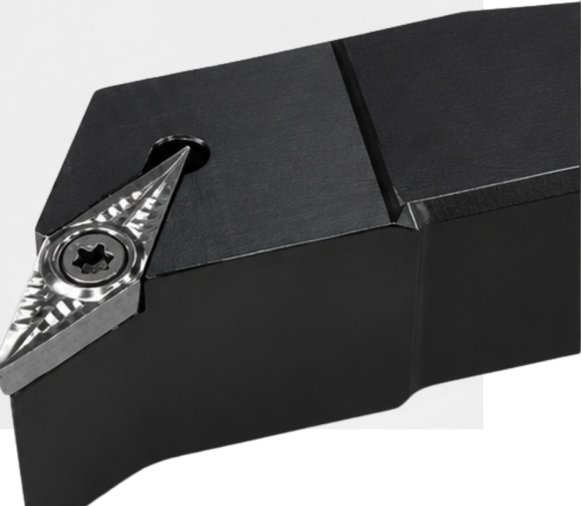

SVQCR/L 117.5° Holders
Screw clamp, for VCMT 1103 / 1604 inserts. Shank 10x10 to 25x25 mm.
Ask for a quote

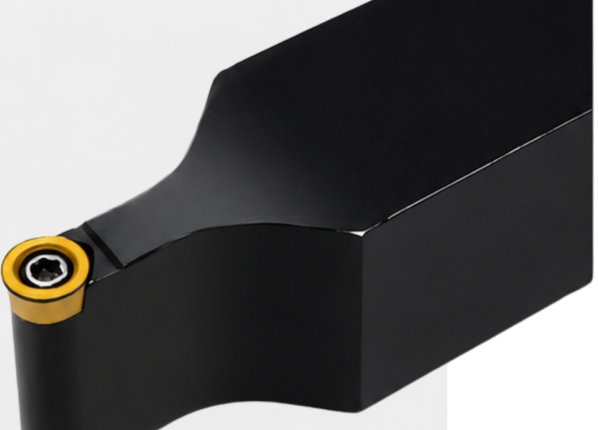

SRDCN Round Insert Holders
Screw clamp, for RCMT 06 / 08 / 10 round inserts. Shank 10x10 to 25x25 mm.
Ask for a quote

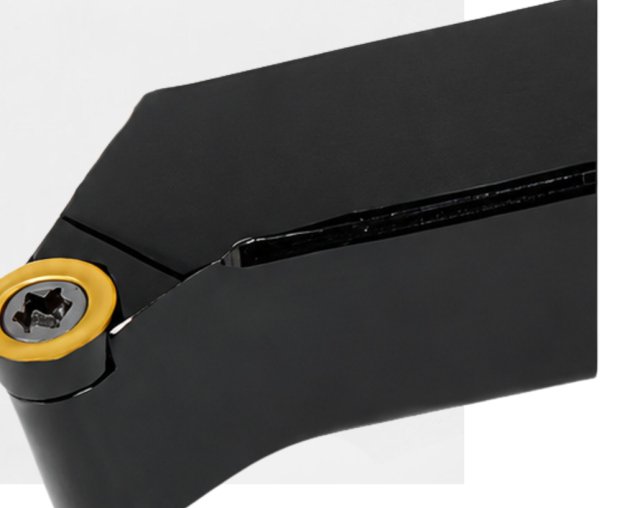

SRGCR/L Round Insert Holders
Screw clamp, for RCMT 06 to 16 round inserts. Shank 12x12 to 25x25 mm.
Ask for a quote
SER/L External Threading Holders
For 11, 16 and 22 mm threading inserts. Shank 10x10 to 32x32 mm.
Ask for a quoteBoring Bars 31 items

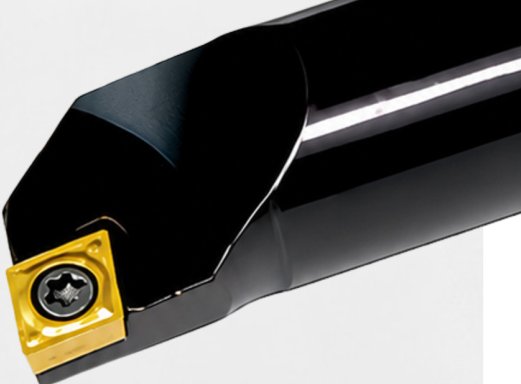

SCLCR/L 95° Boring Bars
Screw clamp, for CCMT 06 / 09 / 12 inserts. Bar 8 to 40 mm, minimum bore 9 mm.
Ask for a quote
SCZCR/L Boring Bars
Screw clamp, for CCMT 06 / 09 inserts. Bar 8 to 25 mm, minimum bore 12 mm.
Ask for a quote

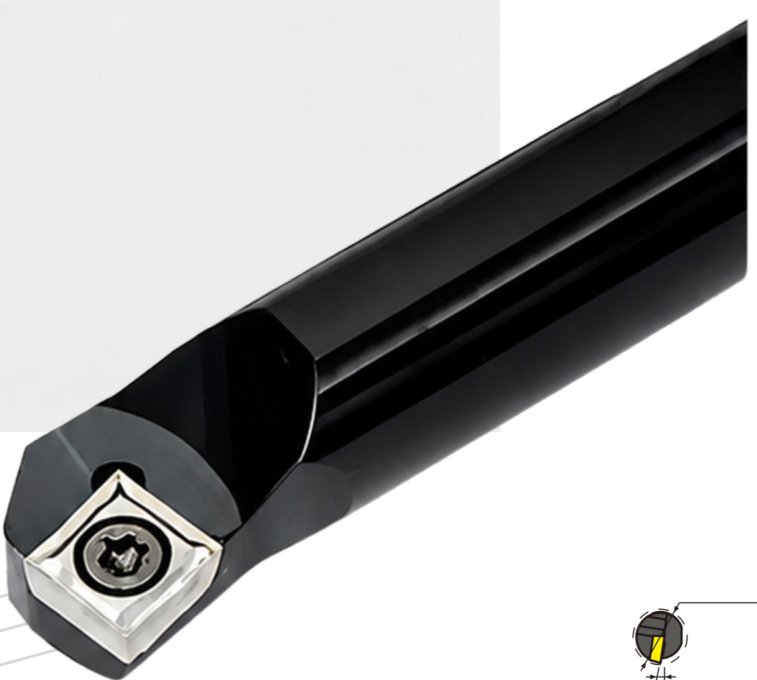

SCKCR/L 75° Boring Bars
Screw clamp, for CCMT 06 / 09 inserts. Bar 8 to 25 mm, minimum bore 10 mm.
Ask for a quote

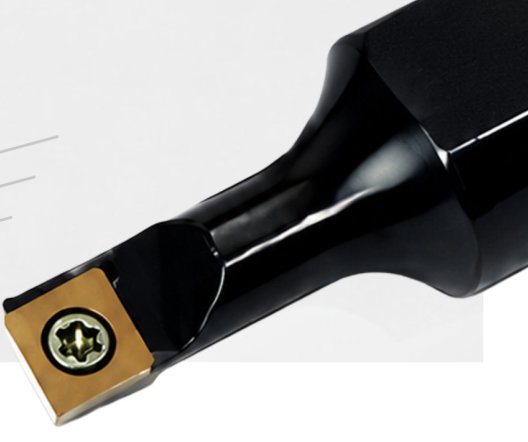

SCLCR/L Small Diameter Boring Bars
Screw clamp, for CCMT 03 / 04 / 06 inserts. Minimum bore 5 mm.
Ask for a quote

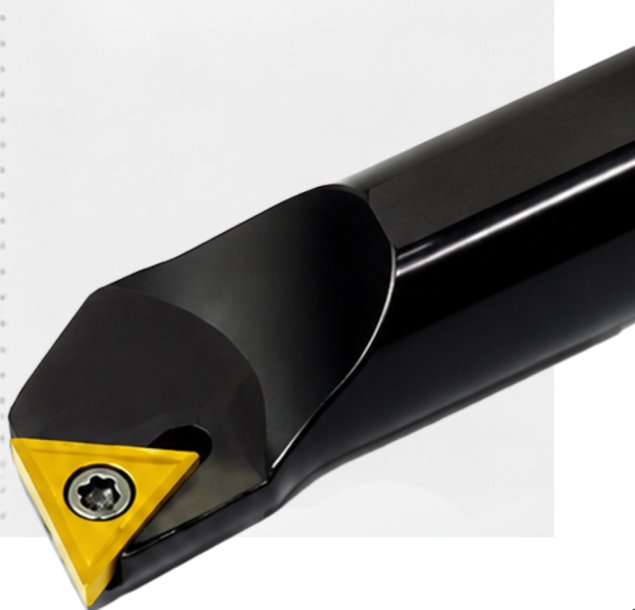

STUCR/L 93° Boring Bars
Screw clamp, for TCMT 09 / 11 / 16 inserts. Bar 8 to 32 mm, minimum bore 10 mm.
Ask for a quote

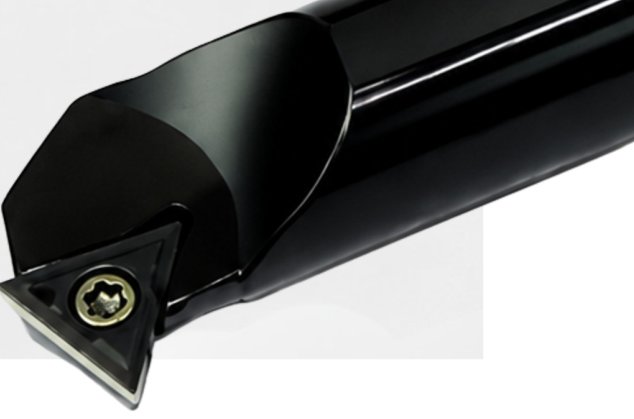

STWCR/L Boring Bars
Screw clamp, for TCMT 09 / 11 / 16 inserts. Bar 8 to 40 mm, minimum bore 11 mm.
Ask for a quote

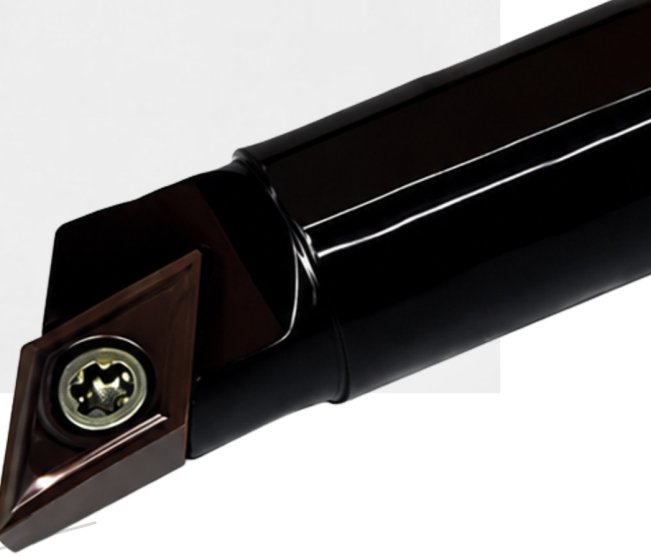

SDJCR/L 93° Boring Bars
Screw clamp, for DCMT 07 / 11 inserts. Bar 8 to 25 mm, minimum bore 10 mm.
Ask for a quote

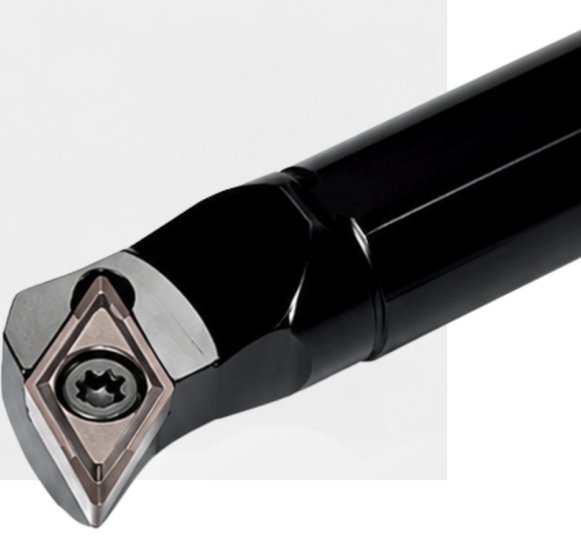

SDUCR/L 93° Boring Bars
Screw clamp, for DCMT 07 / 11 inserts. Bar 10 to 50 mm, minimum bore 13 mm.
Ask for a quote

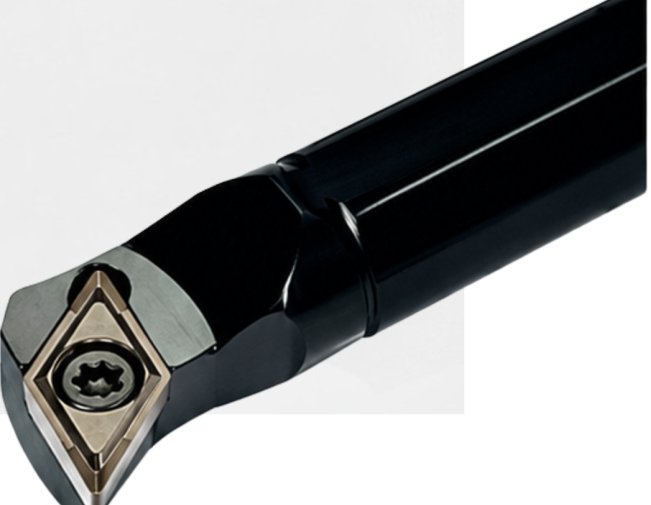

SDQCR/L 107.5° Boring Bars
Screw clamp, for DCMT 07 / 11 inserts. Bar 10 to 40 mm, minimum bore 13 mm.
Ask for a quote

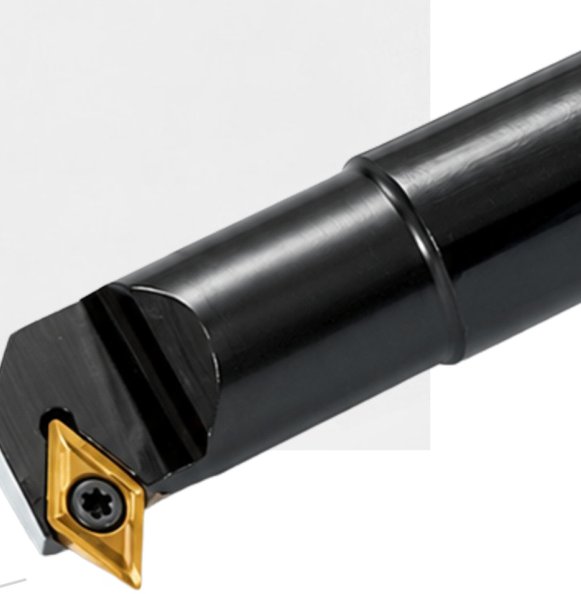

SDWCR/L Boring Bars
Screw clamp, for DCMT 07 / 11 inserts. Bar 12 to 32 mm, minimum bore 19 mm.
Ask for a quote

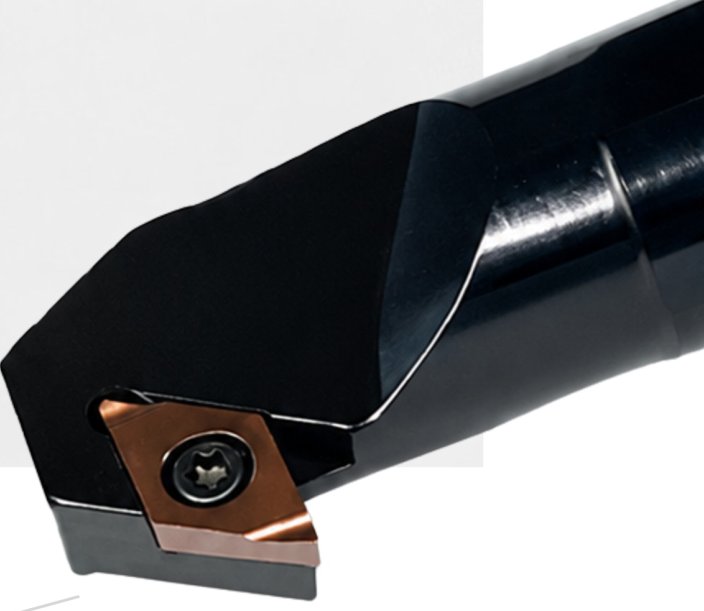

SDZCR/L Boring Bars
Screw clamp, for DCMT 07 / 11 inserts. Bar 10 to 40 mm, minimum bore 15 mm.
Ask for a quote

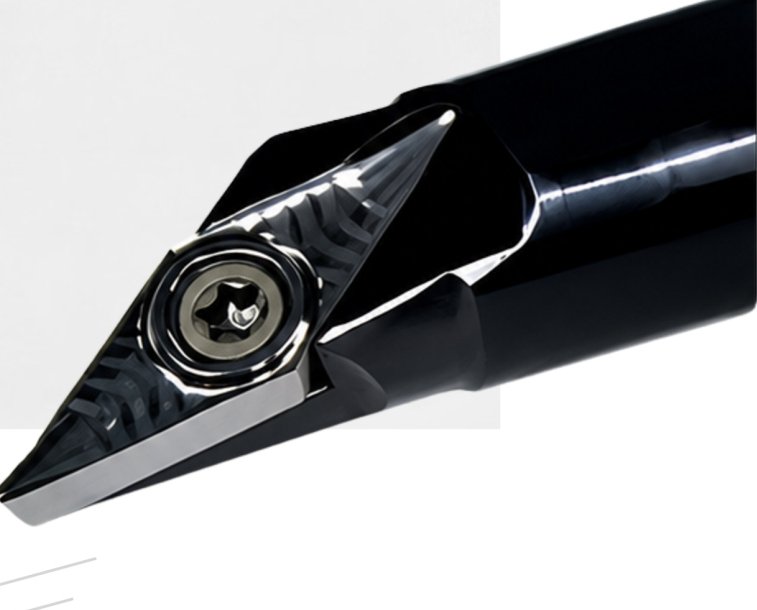

SVJCR/L 93° Boring Bars
Screw clamp, for VCMT 11 / 16 inserts. Bar 10 to 40 mm, minimum bore 12 mm.
Ask for a quote

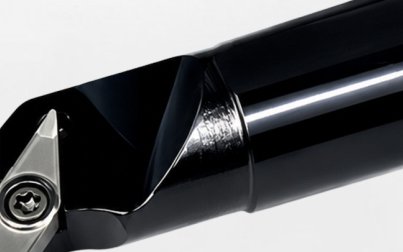

SVUCR/L 93° Boring Bars
Screw clamp, for VCMT 11 / 16 inserts. Bar 16 to 40 mm, minimum bore 22 mm.
Ask for a quote

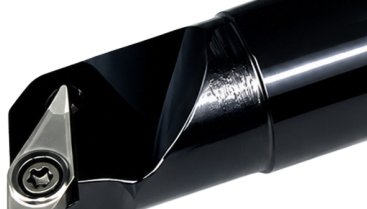

SVQCR/L 107.5° Boring Bars
Screw clamp, for VCMT 11 / 16 inserts. Bar 16 to 40 mm, minimum bore 20 mm.
Ask for a quote

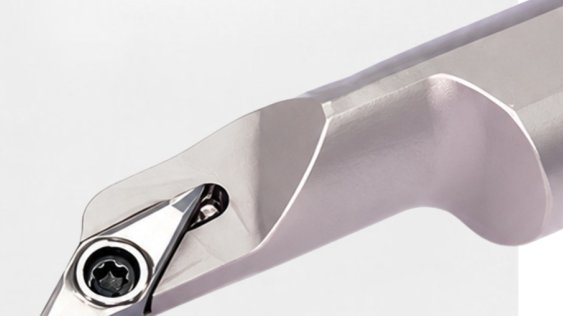

FSVJCR/L Face Boring Bars
Screw clamp, for VCMT 11 inserts. Bar 16 to 25 mm, minimum bore 20 mm.
Ask for a quote

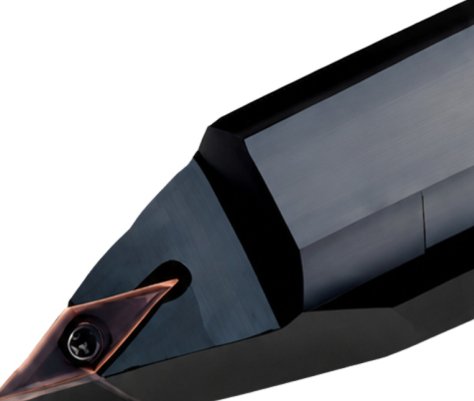

SVVCN Neutral Boring Bars
Screw clamp, for VCMT 16 inserts. Bar 25 to 40 mm, minimum bore 26 mm.
Ask for a quote

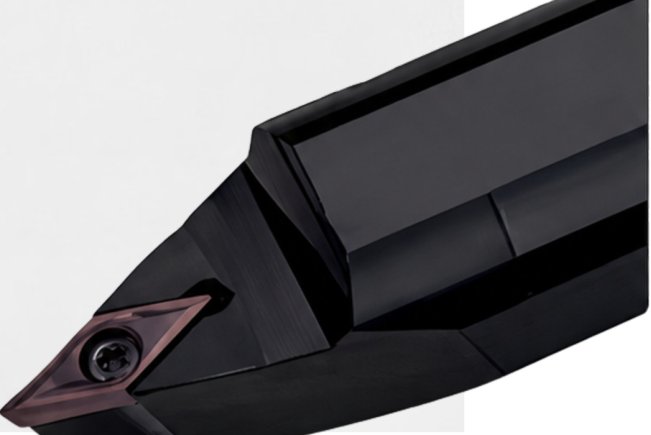

SVVBN Neutral Boring Bars
Screw clamp, for VBMT 16 inserts. Bar 32 and 40 mm, minimum bore 33 mm.
Ask for a quote

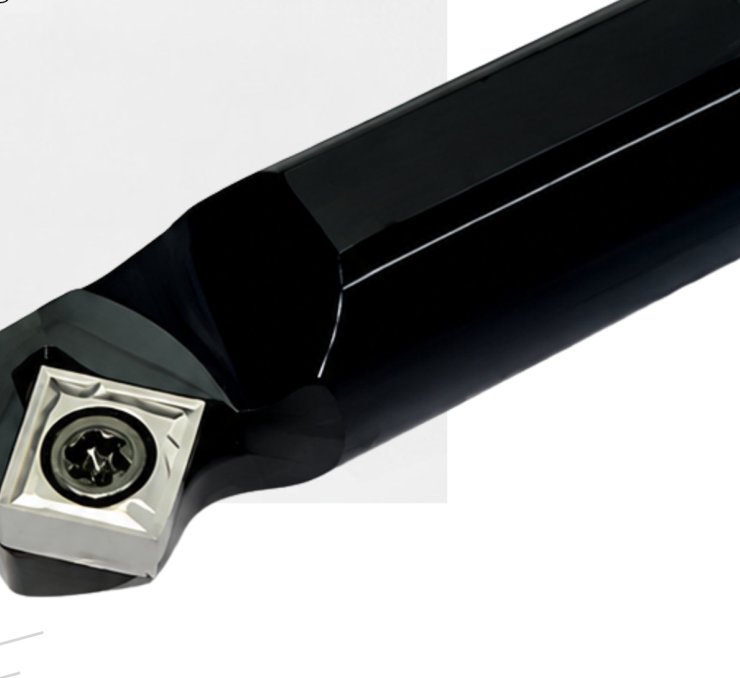

SSSCR/L 45° Boring Bars
Screw clamp, for SCMT 09 inserts. Bar 12 to 32 mm, minimum bore 16 mm.
Ask for a quote

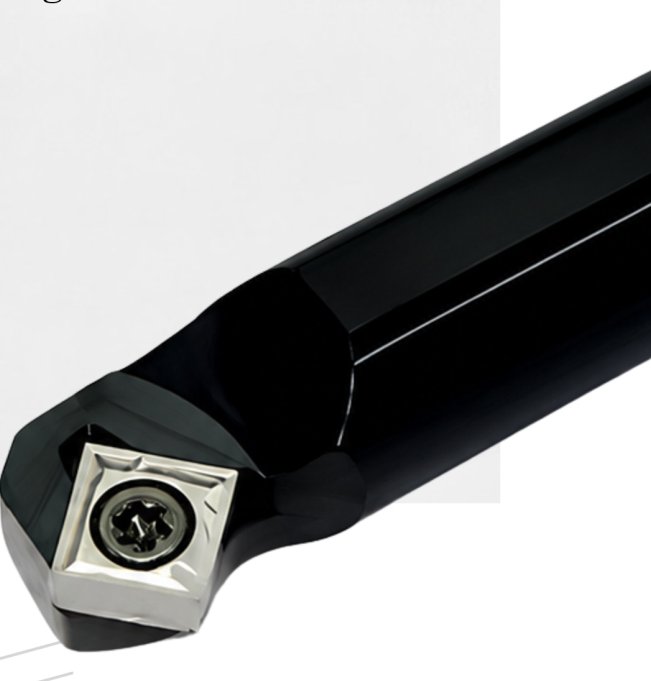

SSKCR/L 75° Boring Bars
Screw clamp, for SCMT 09 inserts. Bar 12 to 25 mm, minimum bore 16 mm.
Ask for a quote

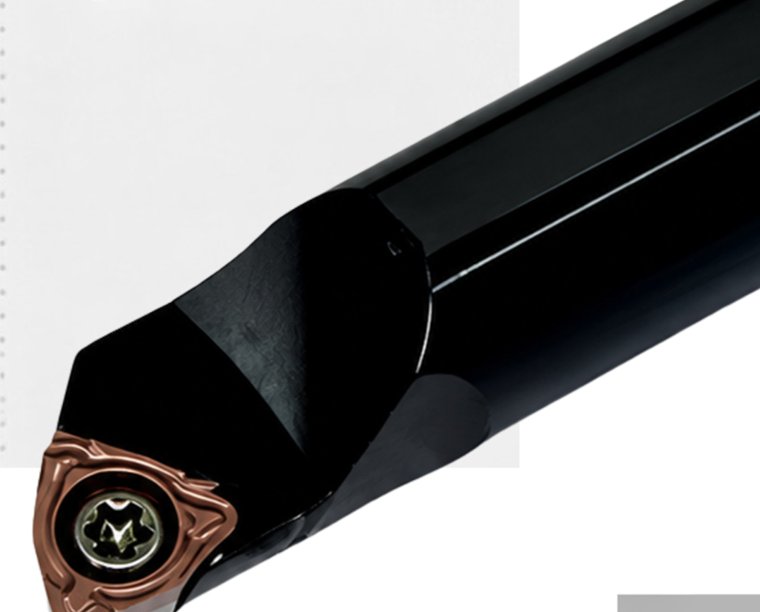

SWLCR/L 95° Boring Bars
Screw clamp, for WCMT 03 / 04 / 05 inserts. Bar 8 to 20 mm, minimum bore 10 mm.
Ask for a quote

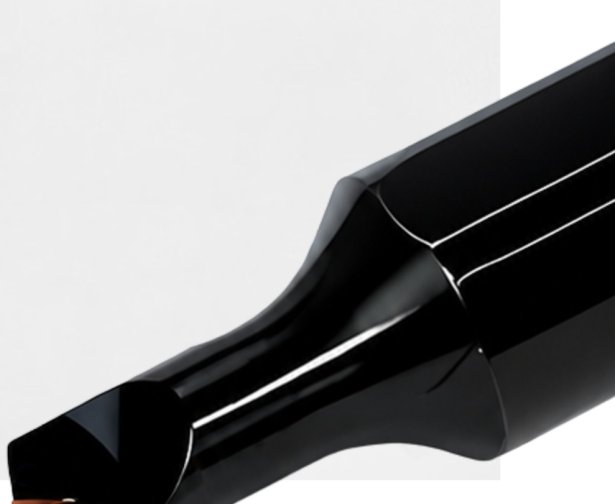

SWUBR/L Small Diameter Boring Bars
Screw clamp, for WBMT 06 inserts. Minimum bore 6 mm.
Ask for a quote
ECLNR/L 95° Boring Bars
Lever clamp, for CNMG 1204 inserts. Bar 32 to 63 mm, minimum bore 40 mm.
Ask for a quote

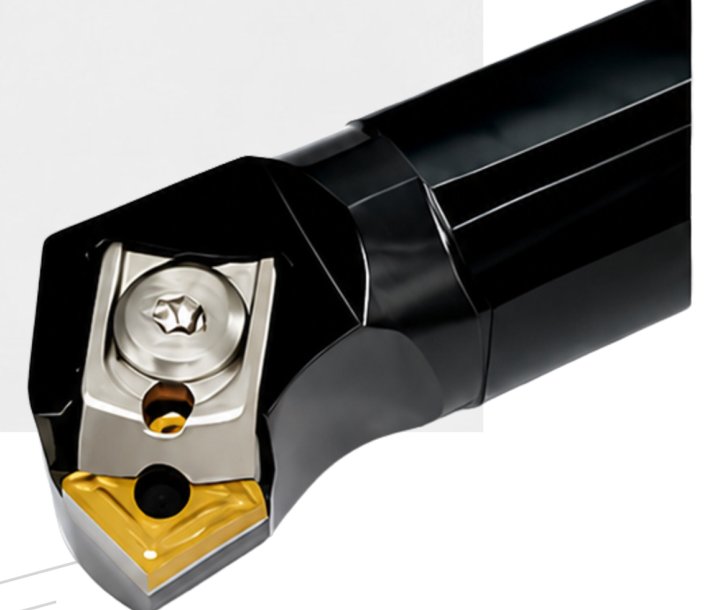

ECKNR/L 75° Boring Bars
Lever clamp, for CNMG 1204 inserts. Bar 32 to 50 mm, minimum bore 40 mm.
Ask for a quote

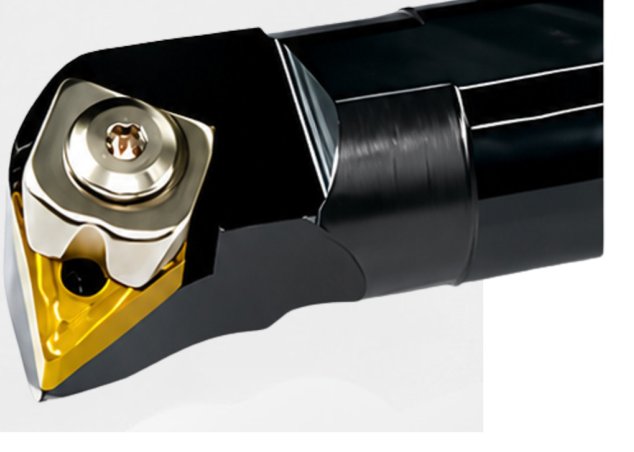

ETUNR/L 93° Boring Bars
Lever clamp, for TNMG 1604 inserts. Bar 25 to 63 mm, minimum bore 32 mm.
Ask for a quote

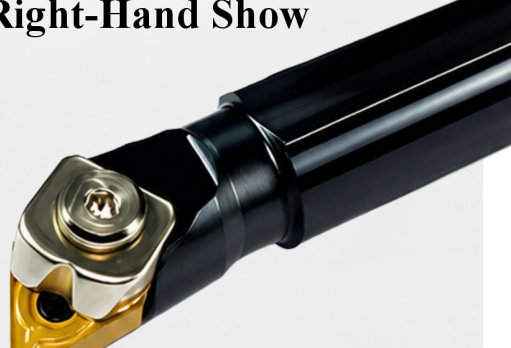

ETLNR/L 95° Boring Bars
Lever clamp, for TNMG 1604 inserts. Bar 20 and 25 mm, minimum bore 25 mm.
Ask for a quote

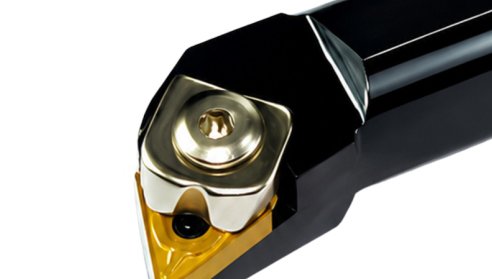

ETQNR/L 107.5° Boring Bars
Lever clamp, for TNMG 1604 inserts. Bar 20 to 50 mm, minimum bore 25 mm.
Ask for a quote

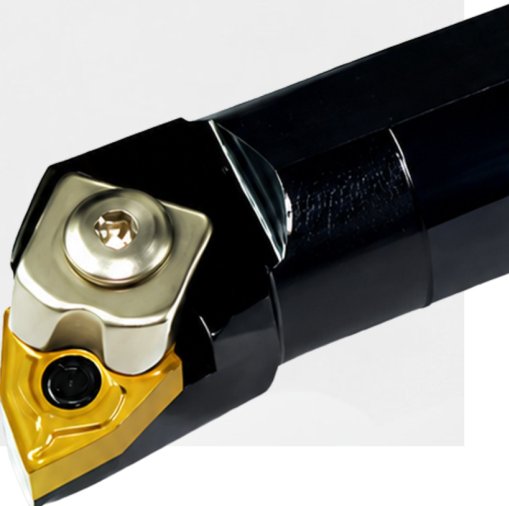

EWLNR/L 95° Boring Bars
Lever clamp, for WNMG 06 / 08 inserts. Bar 20 to 50 mm, minimum bore 25 mm.
Ask for a quote

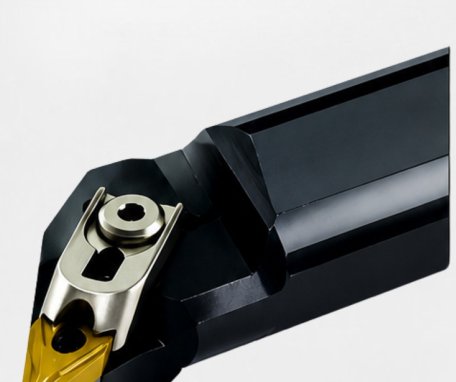

EDQNR/L & EDUNR/L Boring Bars
Lever clamp, 107.5° and 93°, for DNMG 1504 / 1506 inserts. Bar 40 and 50 mm.
Ask for a quote

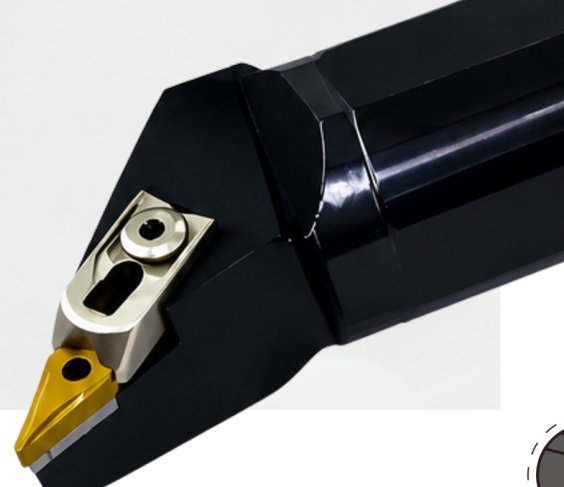

EVUNR/L 93° Boring Bars
Lever clamp, for VNMG 1604 inserts. Bar 40 and 50 mm, minimum bore 50 mm.
Ask for a quote

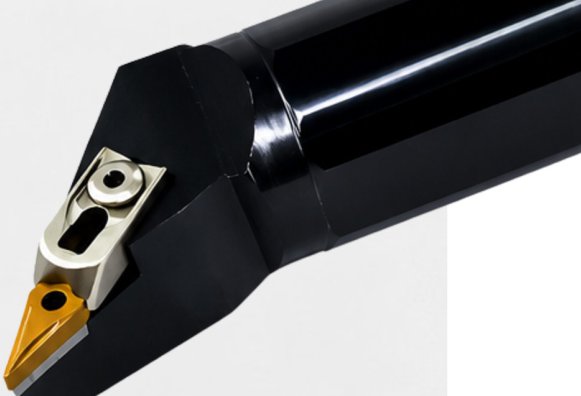

EVLNR/L & EVQNR/L Boring Bars
Lever clamp, 95° and 107.5°, for VNMG 1604 inserts. Bar 40 and 50 mm.
Ask for a quote

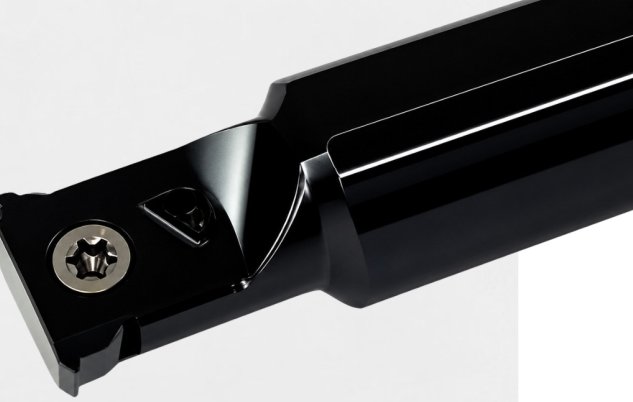

SNR / SIR/L Internal Threading Bars
For 06, 08, 11, 16 and 22 mm threading inserts. Minimum bore 6.4 mm.
Ask for a quoteIndexable End Mills 8 items

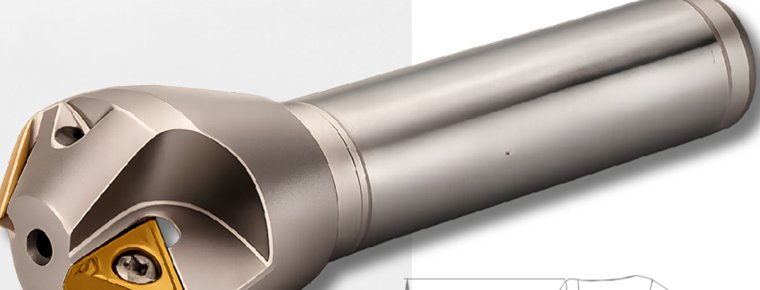

45° Chamfer Mills, TCMT
For TCMT 1102 / 16T3 inserts. Cutting dia. 15 to 53 mm, 1 to 3 inserts.
Ask for a quote

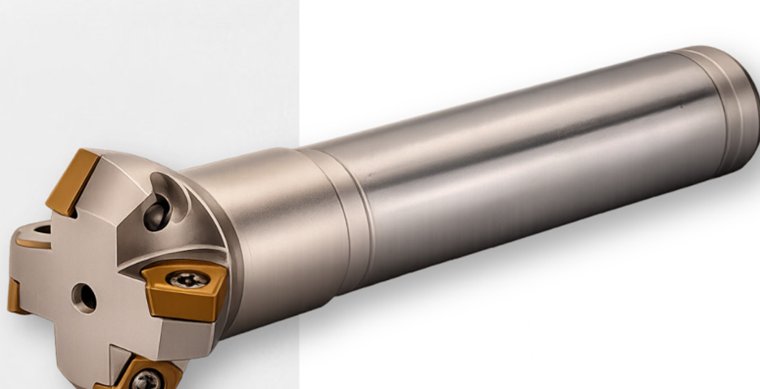

45° Chamfer Mills, SCMT
For SCMT 09T3 / 1204 inserts. Cutting dia. 13 to 50 mm, 1 to 4 inserts.
Ask for a quote

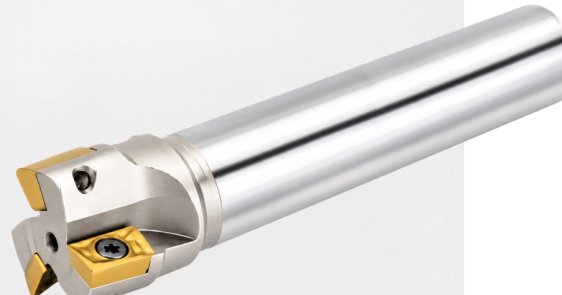

90° Shoulder End Mills, APKT 1604
Cutting dia. 25 to 50 mm, shank 25 / 32 mm, 100 to 200 mm long.
Ask for a quote

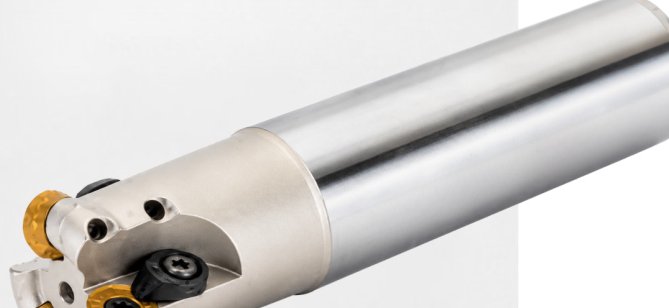

Copy End Mills, RDMT 1204
Round inserts. Cutting dia. 25 to 40 mm, 120 to 200 mm long.
Ask for a quote

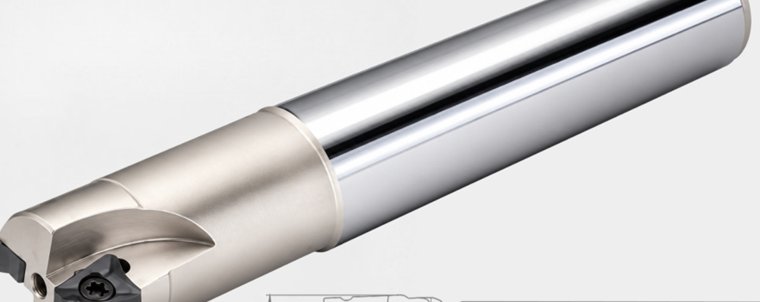

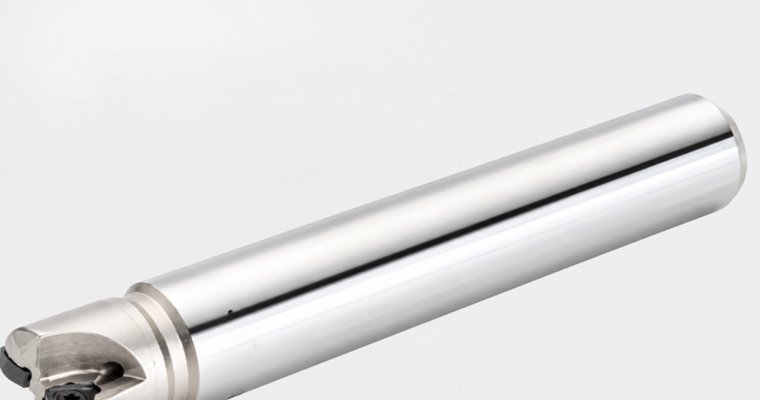

High-Feed End Mills, WNMX
For WNMX 06 / 09 inserts. Cutting dia. 16 to 26 mm, 150 mm long.
Ask for a quote
Indexable Face Mills 11 items

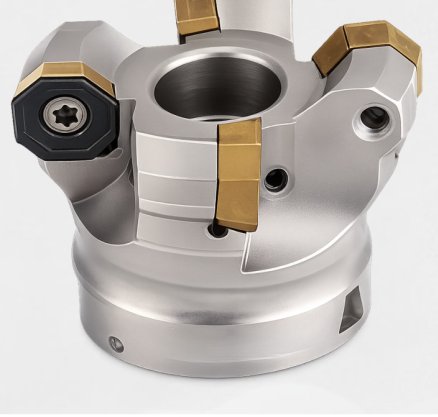

45° Face Mills, ODMT 0605
Octagonal inserts. Cutter dia. 50 to 200 mm, 4 to 12 inserts.
Ask for a quote

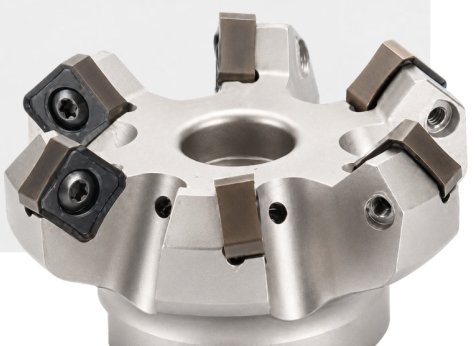

45° Face Mills, SNMX 1205
Double-sided inserts. Cutter dia. 40 to 125 mm, 5 to 12 inserts.
Ask for a quote

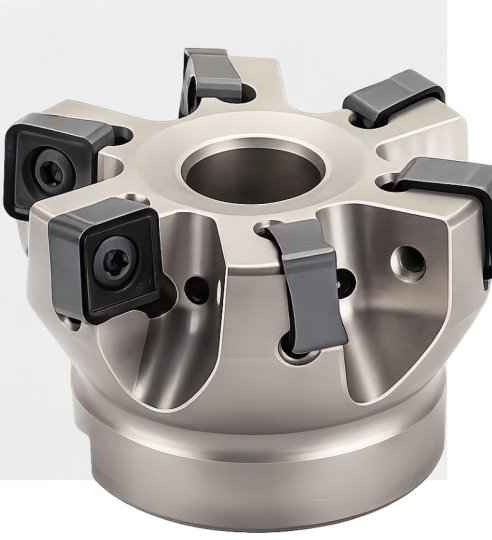

88° Face Mills, SNMX 1205 / 1206
Double-sided inserts. Cutter dia. 50 to 160 mm, 5 to 12 inserts.
Ask for a quoteGrooving & Parting Holders 8 items

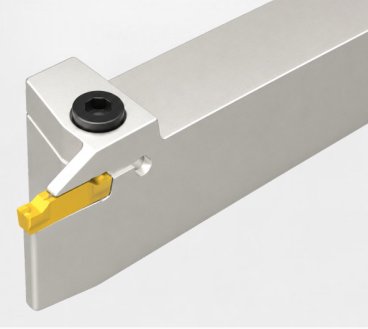

External Grooving Holders
For 2 to 5 mm grooving inserts. Shank 16x16 to 25x25 mm, max. depth 8 to 32 mm.
Ask for a quote

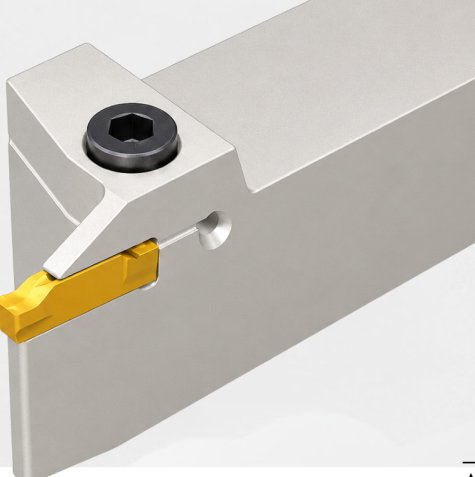

External Grooving Holders, Wide
For 6, 8 and 10 mm grooving inserts. Shank 20x20 to 40x40 mm.
Ask for a quote

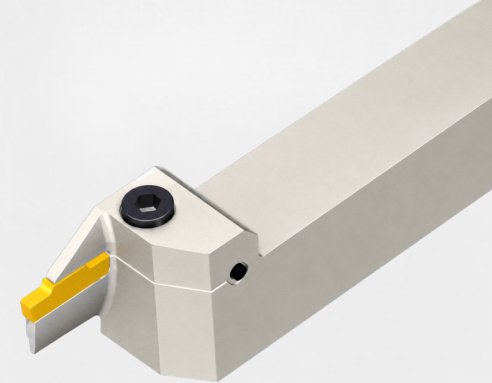

Face Grooving Holders
For 3 to 6 mm inserts, first-cut diameter from 19 mm upwards. Shank 20x20 and 25x25 mm.
Ask for a quote

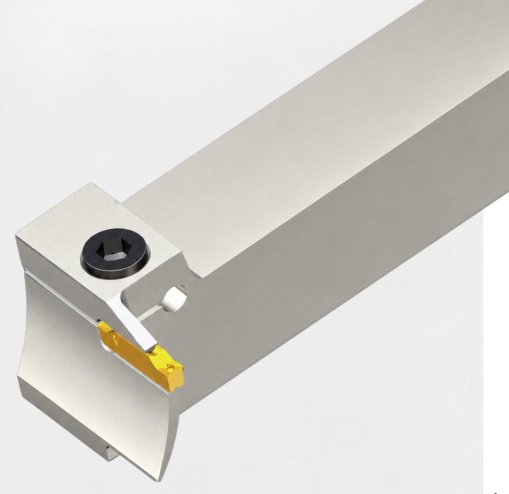

Face Grooving Holders, 90°
For 3 to 6 mm inserts, diameters 30 mm to unlimited. Shank 25x25 mm.
Ask for a quote

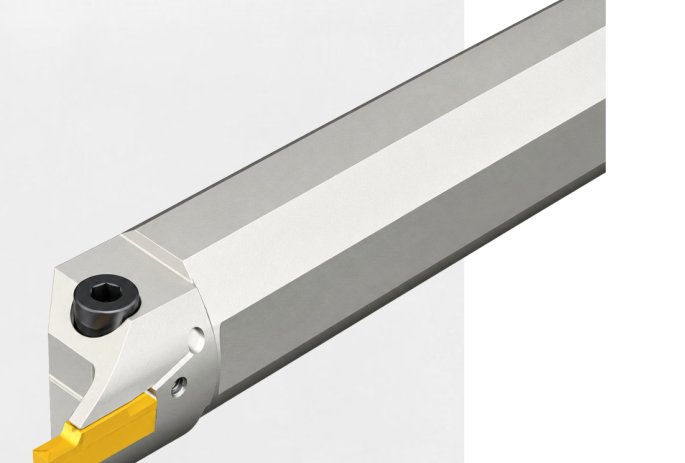

Internal Face Grooving Bars
For 3 and 4 mm inserts, bores from 33 mm. Bar 25 and 32 mm.
Ask for a quote

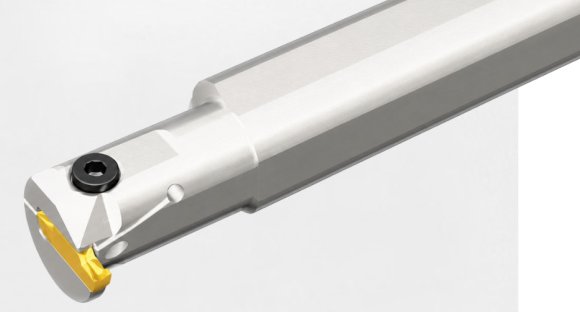

Internal Grooving Bars
For 2 to 8 mm grooving inserts. Bar 16 to 50 mm, minimum bore 8.5 mm.
Ask for a quoteAvailable white label or under our own brands, such as Sher, Dirgam and Lion. Send us your sizes and quantities for a price and delivery date.
Request a quotation
